WiFi Switch Smart Opener APP Remote Controller For Garage Door Gate Supprot Alexa

25,94 34,44

Clear
Add to Wishlist
Add to Wishlist
Compare

Description



Note before Order, please test compatibility

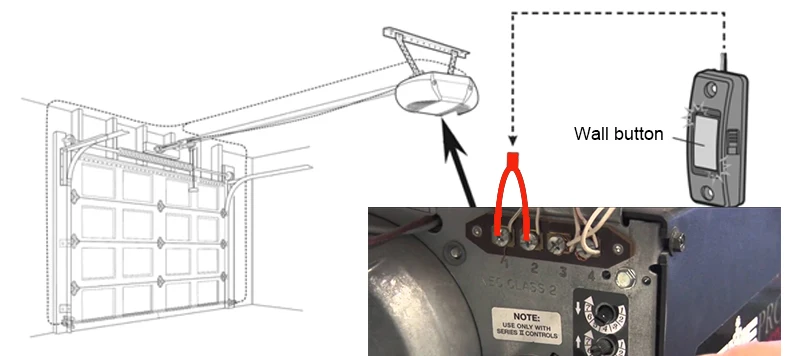

Please check if your garage controller is compatible with our module. Take a wire with both ends stripped or a straightened-out paper clip to short-circuit the wall button terminal on the opener (I marked with red color). If the garage door opens or closes, it can work with our smart controller.

Garage door opener controller features:

WiFi Smart Garage Door Controller and Garage Open Close Monitor Compatible With Alexa Echo , Google Home voice control No Hub Require REMOTE MONITORING: You can open or close the door by the APP. You can check the garage door open or closed state in real time. You can authorize multiple people to access your garage. EASY TO USE: Instantly control the garage door by tapping the EweLink app on your smartphone. Just connect the smart opener to the 2.4G WiFi network. VOICE CONTROL: You can activate your garage door opener by placing a voice command to your Alexa or Google Assistant device or driving near the garage door WIDE COMPATIBILITY: You can only use one controller per garage door opener. Compatible with most general garage door openers.Please check the our list. TIMER FUNCTION: You can set schedules to open and close your garage door. Quick & easy installation as well without the need of a professional. No Hidden Mon COUNTDONW FUNCTION: You can set the countdown time to close or open the garage door. EASY ADD DEVICE: 1.The garage door will be activated when added successfully (when the blue LED light stop blinking), so keep your door closed first. Power up the garage, and the ren light and blue light flash alternatively. 2. Launch “SEweLink” APP. Tap the icon ‘+’ on the top right corner. 3. Select the “All Devices”, then select the “Wi-Fi Connector” type. 4. Tap “Confirm indicator rapidly blink” 5. Input the correct 2.4G Wi-Fi passwords. Then, tap confirm. 6.It will auto-connect with the device. Once the process is completed,it will prompt you that you can rename the device. Enter a new name and press’Save’.

Smart Wifi Garage Door Opener Controller

Just one of this Garge door opener controller to make the garage smart,without any change , to open and close the garage door by phone ,by schedules ,by voice (work with alexa & google home)etc.

EweLink APP Control

Availavle in google & IOS

Schedules

Auto open or close the garage with your schedules or countdown. Automatically detects the status of the garage door more safer without false running.

Countdown

You can ask the Courier put the package in your Garage with the countdown function , and the Garage door will auto closed after the time , The smart Garage door open/close state detector function will help you ensure the Garage door open/close as your set.

Garage Door Open/Close APP Message push & History

No matter where you are,You will get the APP message push when your Garage door opened/closed, and you can check the Garage door running history.

Support Amazon Alexa and Google Assistant to open/close Garage door by voice

You should add this Garage door controller to work with tuyasmart or smartlife APP , and Binding it with Amazon Alexa or Google Assistant to achieve voice control. We have voice code protection,when you open the Garage door.

Has many uses

DC/AC Motor,Access Control,Garage door,Garden door,Computer,Bulb and Other devices that need inching (jog),Self-locking and interlock funtion. Note:Please make sure to select the right model before buying,or leave us a message before shipping.

Features:

Cutover current≤ 10A Voltage: Type1 DC7-32V input, Type 2 AC85-250V input Output: No output ( Dry contact switch) Working Temperature: -20 to 70degree Working Humidity: 40% to 80% RH WIFI Standard:2.4GHZ, 802.11 b/g/n(don’t support 5G) Size:120*38*25mm APP:eWeLink

Product Selling:

1.Supports WiFi network,remotely turn on or off connected appliance/light; 2.Supports status tracking: device status timely provided to the “EWeLink”; 3.Supports max 8 enabled scheduled/countdown/loop timers for each device; 4.Supports numerous WiFi smart switches on one smart phone; 5.Works with Amazon Echo, Echo Dot, Amazon Tap; 6.Works with Google Home and Google Nest.

Working mode:

1.Inching mode : Switch on channel 1 , channel 1 will be automatically closed after 0.5-3600s. Channel 2 is same to the channel 1 . 2.Self-locking : like normal 2 channle switch , each channel could be switched on/off seperately . 3.Inter lock : Switch on any 1 channel , the other channels will be switched off automatically .

Timer & Schedule

Set up timing schedules to turn on/off lights

Share Control

Share control of your home appliances to your family or friends so that they can also control the devices remotely

APP Control

1.One APP can control multiple device 2.One device can be controled by multiple phone.

Voice Control

Compatible with Google assistant & Alexa

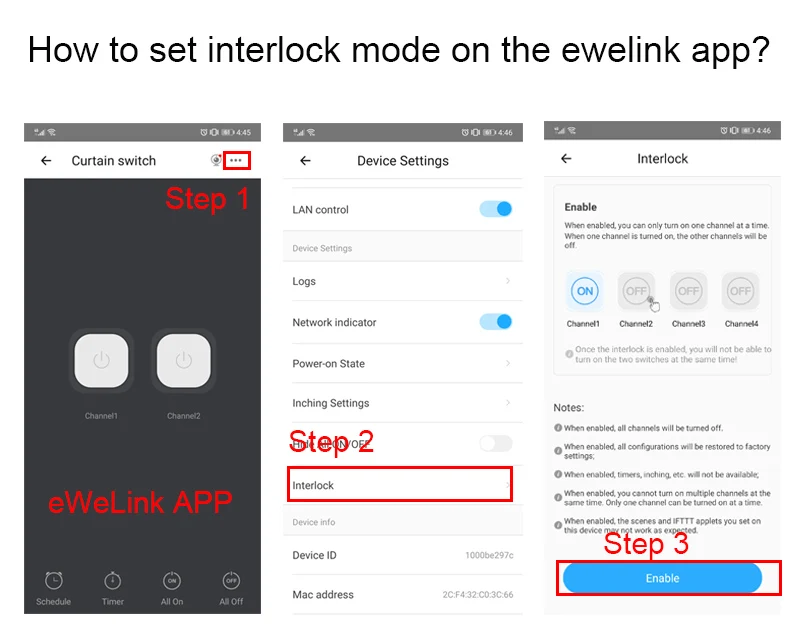

How to set Inching/Interlock mode on the APP?

Wiring Diagram

Note:

We have added a USB5v port to the device, just for testing purposes, we do not recommend using it. If the buyer wants to use the USB5v input, they need to remove the shell to use it. I have attached a comparison picture. We will delete this USB5V port in subsequent versions, sorry for the inconvenience caused.

433MHz1527 learning code remote control

TOP 1 Remote Control Without Battery (12V 23A) 1xScrewdriver

433MHz1527 learning code remote control

TOP 2 Remote Control Without Battery (CR2032) 1xScrewdriver

Additional information

Weight 100.0 g
Dimensions 10.0 × 2.0 × 10.0 cm
Color

2ch AC85-250V, 2ch DC7-32V, 2pcs Without battery-10, 2pcs Without battery-350686, AC85-250V and Remote, DC7-32V and Remote

Origin

CN(Origin)

alexa Amazon echo,Google Assistant

Support

Wireless Type

Only 2.4GHz, not support 5G

Feature 1

Garage door open/close by phone APP

Mode

Inching Interlock Self-locking

Feature 3

Garage door open/close with APP message push

Feature 2

Garage door open/close by schedule

Material

ABS+PC

Feature 5

Garage door open/close by voice

Feature 4

Garage door open/close by countdown

Model Number

2ch wifi switch

work voltage

7-32V ,85V-250V

Feature 6

Garage door open/close history re

Certification

CE

Brand Name

Scimagic-RC

Mobile Phone APP

Ewelink for android & IOS
