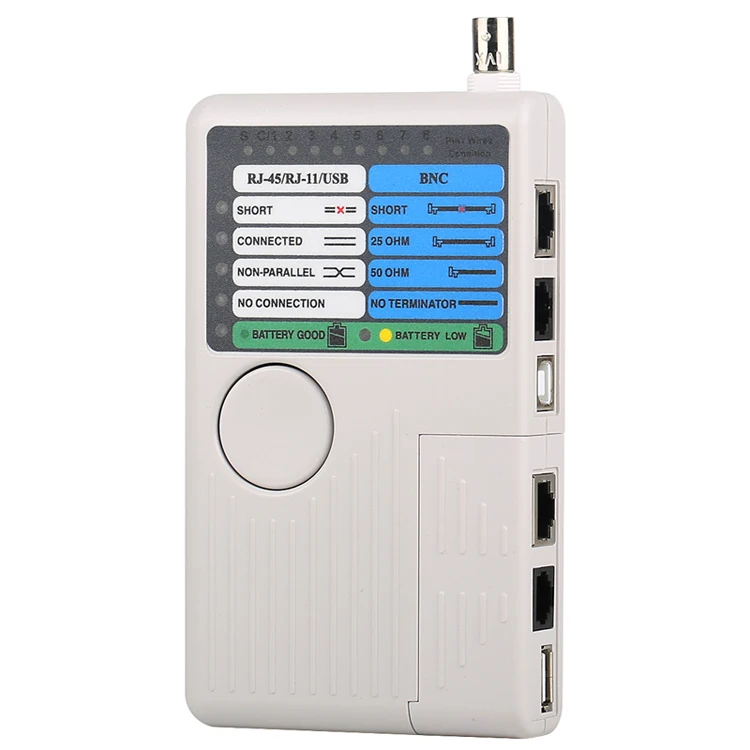

Remote RJ11 RJ45 USB BNC LAN Network Cable Tester For UTP STP LAN Cables Tracker
83 in stockCompare
1 x 4-in-1 Network Cable Tester
1 x Far End Remote Jack (USB RJ45 RJ11) (Attached to the main unit)
1 x BNC Remote Jack
1 x Instruction Manual
we don’t offer retail box.
since the international air does not allow contains flammable and explosive goods, so the unity does not contain the battery delivery, thank you for understanding!
Test 4 types of cables: RJ-45, RJ-11, USB and BNC. Test installed wiring or patch cables.
Tests shielded (STP) or unshielded (UTP) LAN cables.
Test shields in USB cables.
Can test from 2 remote points.
Beeper provides audible annunciation of test results.
Remote unit stores in Main unit.
BNC terminator 25/50 Ohm indications.
Straight or crossover indications.
LEDs indicate connections and faults of wire and pins.
RJ-11/RJ-45 are equipped with 50u gold plating. 300 feet test distance (RJ-45/RJ-11/BNC).
Ergonomic portable handheld design.
Powered by a 9V Alkaline battery. (Not included)
Convenient battery access.
Low Battery Indicator.
Simple one button test.
Fast speed testing.
With a soft leather bag for carrying.
High quality warranted.
Cable Tested: UTP and STP LAN cables, terminated in RJ-45 male connectors (EIA/TIA 568); RJ-11 cables with male connectors, 2 to 6 conductors installed; USB cables with Type A flat plug on one end and type B square Plug on other end; BNC cables with male connectors
Faults Indicated: No Connections, short circuit , Opens and Crossover
Low Battery Indicator: LED lights to indicate low battery Power: 1 x 9 V 6F22 DC Alkaline Battery (Battery Not Included)
Item dimensions: Appox. 162 x 85 x 25mm (6.38 x 3.35 x 0.98 inch)
Item weight: 164g (Battery excluded)
Package dimensions: 225 x 110 x 43 mm
Package weight: 215g
|Dimensions||10.0 × 5.0 × 5.0 cm|
about 126*112*43 (with packaging) (mm)
